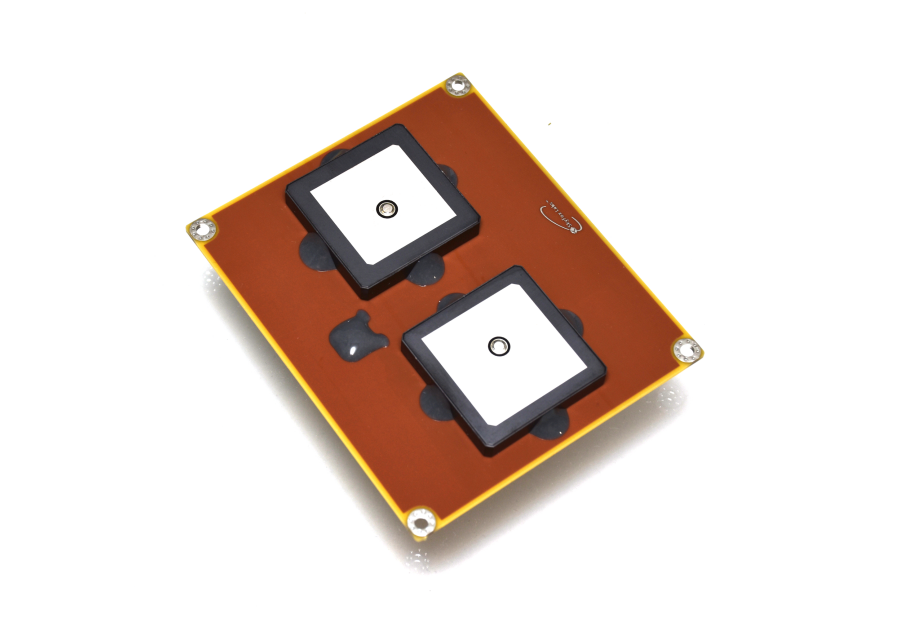

piPATCH-IoT/FM (Flight Model)
Space-Friendly™ All Band IoT Antenna.
Get maximum data transfer out of your tunable IoT (Internet of Things) Radiomodem Chipset onboard! Enable a new level of data harvesting and bidirectional communication!
Are you looking for a high-gain CubeSat All Band IoT Antenna covering majority of terrestrial IoT services working on various coordinated frequencies? The piPATCH-IoT covers 868 and 915 MHz and related bands via dedicated antenna array connected to the radiomodem via single RF port.
TOP Ceramics. | Maximum Reach.
The piPATCH-IoT is a Top Notch, High Gain RHCP (Right Hand Circular Polarization) Antenna with Wide RF Coverage and uniform hemispherical radiation pattern intended for a X/Y +/- CubeSat walls. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the terrestrial sources with a X/Y-face.
All Bands: Europe | USA | Australia
The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with at least 10+ mm side wall gaps (protrusion from rail margins). Cover the IoT from your satellite platform Globally using Single Antenna Unit!
Part Number: piPATCH-IoT/FM (Flight Model)
Product Summary
- All Band CubeSat IoT/ISM/LoRA/SigFox Antenna
- Majority of IoT covered Countries Globally
- Full Band 868 MHz (center)
- Full Band 915 MHz (center)
- Single RF Port for TX and RX
- Allow use of Single tunable RF Modem with Single RF Port
- Dimensions: 98x82.6x(+7)/(-4) mm, low profile, MCX-F connector
- Mass: 70 grams (excluding mounting screws)
- Fits all known CubeSat structures (ideal for X/Y +/- mount) and at least 10+ mm CubeSat Protrusion Deployers
- Mounting hole position modification FREE on Request
- Up to 5W RF output power
- RF Coupler, EMI shielding
- Dual Use Goods: YES
- HS Code: 8529.10.69
- Lead Time: 2-4 Weeks + Shipping
- Country of Origin: Czech Republic
Pricing (EUR)
Qty. Unit Price Ext. Price 1: 2390 € 2390 € 2: 2190 € 4380 € 3+: 1990 € 5970 €
Want this for your project? → Contact us.

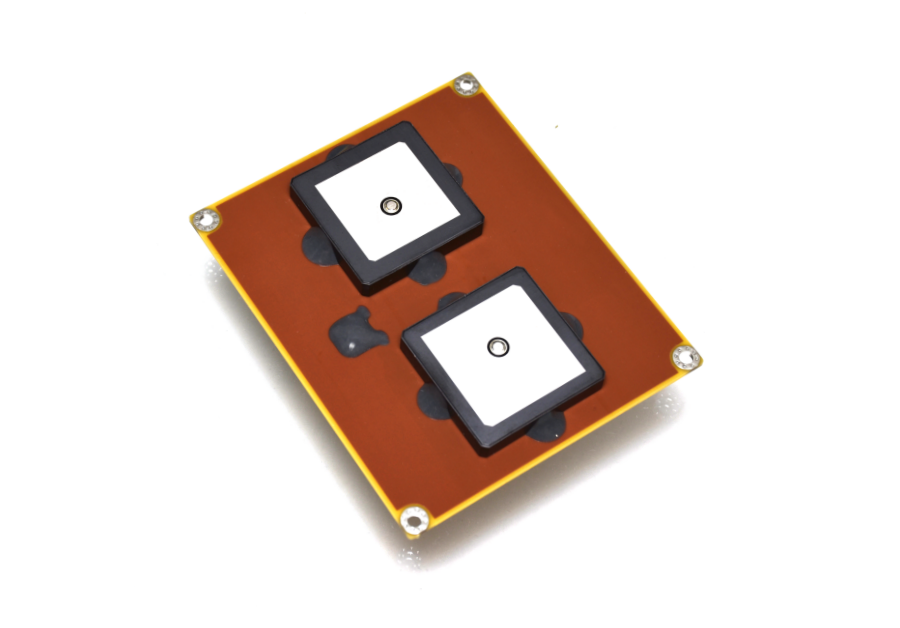

piPATCH-IoT/OEM (Flight Model)
OEM Version. | More Yours.
Get maximum data transfer out of your tunable IoT (Internet of Things) Radiomodem Chipset onboard! Enable a new level of data harvesting and bidirectional communication! Same function and shape, no PCB markings or logos. Ready for flight.
Are you looking for a high-gain CubeSat All Band IoT Antenna covering majority of terrestrial IoT services working on various coordinated frequencies? The piPATCH-IoT covers 868 and 915 MHz and related bands via dedicated antenna array connected to the radiomodem via single RF port.
TOP Ceramics. | Maximum Reach.
The piPATCH-IoT is a Top Notch, High Gain RHCP (Right Hand Circular Polarization) Antenna with Wide RF Coverage and uniform hemispherical radiation pattern intended for a X/Y +/- CubeSat walls. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the terrestrial sources with a X/Y-face.
All Bands: Europe | USA | Australia
The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with at least 10+ mm side wall gaps (protrusion from rail margins). Cover the IoT from your satellite platform Globally using Single Antenna Unit!
Part Number: piPATCH-IoT/FM (Flight Model)
Product Summary
- All Band CubeSat IoT/ISM/LoRA/SigFox Antenna
- Majority of IoT covered Countries Globally
- Full Band 868 MHz (center)
- Full Band 915 MHz (center)
- Single RF Port for TX and RX
- Allow use of Single tunable RF Modem with Single RF Port
- Dimensions: 98x82.6x(+7)/(-4) mm, low profile, MCX-F connector
- Mass: 70 grams (excluding mounting screws)
- Fits all known CubeSat structures (ideal for X/Y +/- mount) and at least 10+ mm CubeSat Protrusion Deployers
- Mounting hole position modification FREE on Request
- Up to 5W RF output power
- RF Coupler, EMI shielding
- Dual Use Goods: YES
- HS Code: 8529.10.69
- Lead Time: 2-4 Weeks + Shipping
- Country of Origin: Czech Republic
Pricing (EUR)
Qty. Unit Price Ext. Price 1: 2950 € 2950 € 2: 2780 € 5560 € 3+: 2530 € 7590 €
Want this for your project? → Contact us.
