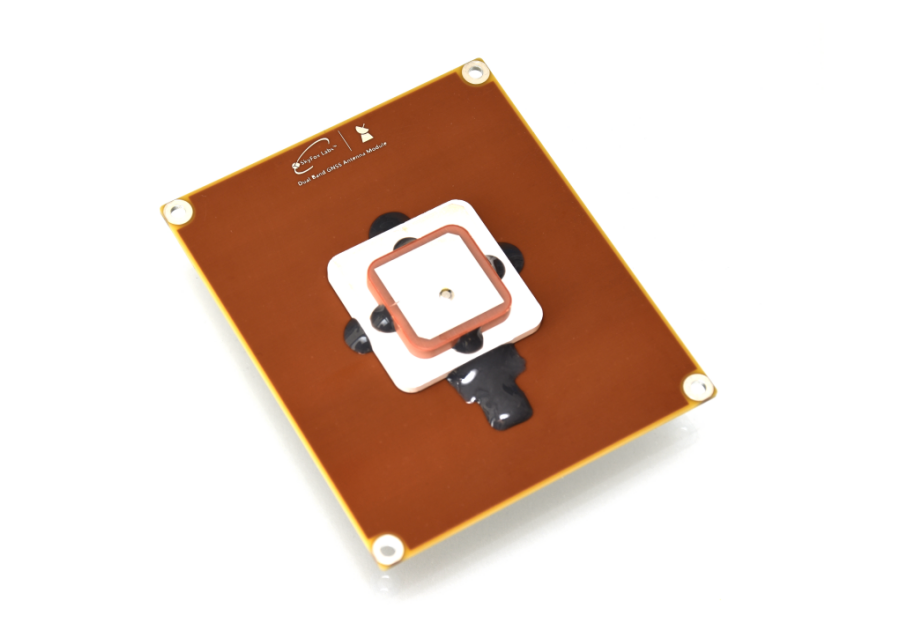

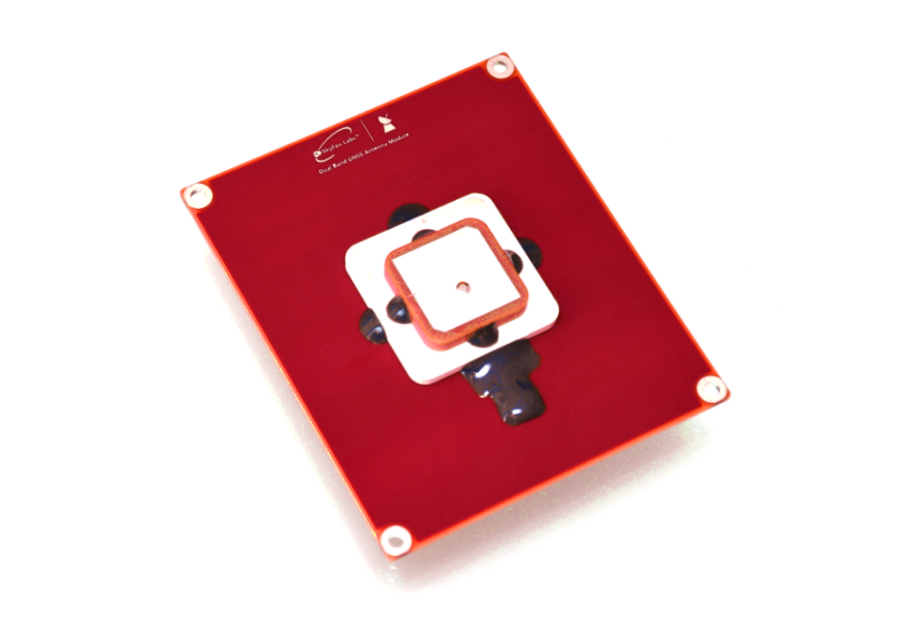

piPATCH-L1L2/FM (Flight Model)

Space-Friendly™ GNSS L1 + L2 Antenna

Are you looking for a high gain CubeSat GPS Antenna supporting GALILEO constellation receiver equipment (GPS-L1, GALILEO-E1, GPS-L2, GALILEO-L2)? The piPATCH-L1L2 is a High Quality, High Gain Antenna with low noise, RF filters and uniform hemispherical radiation pattern intended for a X/Y +/- CubeSat walls. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the GNSS zenith with a X/Y-face.

The module size 98x82.6 mm and very low profile is ideal for standard CubeSat structure envelopes with up to 10 mm side wall gaps. Connect the RF Coaxial cable with DC power from 2.7 to 5.5V and start to receive first signals from GPS and Galileo constellation with your multi-frequency GNSS Receiver in minutes!

Part Number: piPATCH-L1L2/FM (Flight Model)

Product Summary

• ACTIVE CubeSat GNSS Antenna with LNA
• 50+ dBc-Hz SNR on ground for close-to-zenith satellites
• Dual Frequency L1 + L2 Bands (1575 + 1227 MHz)
• Dimensions: 98x82.6 mm, low profile, MCX-F connector
• Mass: 70 grams (excluding mounting screws)
• Fits all known CubeSat structures (ideal for Z+/- side mount)
• Mounting hole position modification FREE on Request
• 2.7-5.5 V @ 40 mA
• SAW Filters, EMI shielding
• Powered via RF Coax

• Dual Use Goods: YES
• HS Code: 8529.10.69
• Lead Time: 2-4 Weeks + Shipping
• Country of Origin: Czech Republic

Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    3190 €      3190 €
2:    2870 €      5740 €
3+:   2550 €      7650 €
