piDOSE-DCD/FM (Flight Model)
Space-Friendly™ Digital CubeSat Dosimeter
Do you work in the area of Space Weather or wish to fly your own radiation measurement satellite constellation? Are you looking for a smart, miniature and low power space-grade radiation sensor? The piDOSE-DCD Industry's First Digital CubeSat Dosimeter (Geiger Counter) is the right unit for your needs!
The 3.3V @ 30mW Ultra Low Power, low voltage solid state radiation detector replaces old, vintage, bulky, high-voltage Geiger-Müller tubes in a matchbox-sized form factor. The module provides data over the UART interface. The easy-to-parse format with ASCII lines are terminated with CR+LF and contains human-readable values.

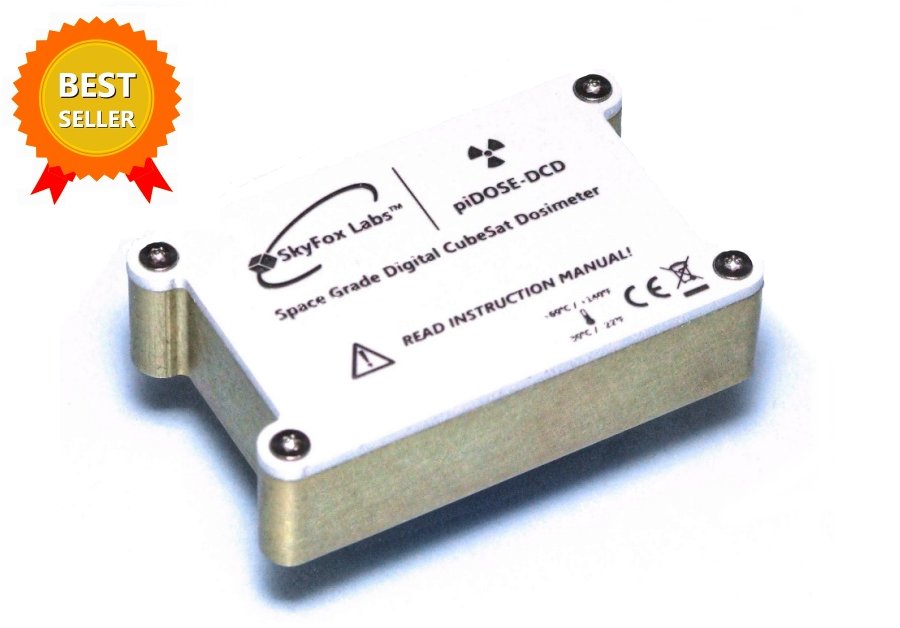

Part Number: piDOSE-DCD/FM (Flight Model)
Operations Example Videos
VIDEO 1 Here (Digitally Processed Output @ Vimeo)
VIDEO 2 Here (Analog Comparator Output @ Vimeo)
VIDEO 3 Here (ALARM Signal Output @ Vimeo)
VIDEO 4 Here (Fast Doserate captured using Ukrainian BELLA Personal Dosimeter @ Vimeo)
Product Summary
- Digital CubeSat Dosimeter / Geiger Counter Sensor
- Space Weather Alarm (SWA) – triggered over 40 uSv/h
- Trigger set to 2x ISS Average Dose Rate
- Orbital and High Altitude Balloon (HAB) use
- TRL-9 ("Flight-proven")
- Immediate Alarm (within 1 second only!), No slow RadFET used!
- UART Data Output
- Measurement Range 0.01 to 9000 uSv/h
- Temperature Sensor, Bus Voltage Telemetry, Uptime Counter
- Power Consumption 30 mW @ 3.3 V, 70 mW @ 5 V
- Operating range 0.1 – 10 MeV
- Data Output in miliSieverts per hour (mSv/h)
- Power Supply Input 2.7 to 5.5 V (full bandwidth in whole range)
- Ultra Low Dimensions 53x32x(+14, -1) mm
- Low Mass 32 grams including four M2x8 mounting screws
- Dual Use Goods: YES
- HS Code: 9030.10
- Lead Time: 2-4 weeks + Shipping
- Country of Origin: Czech Republic
Pricing (EUR)
Qty. Unit Price Ext. Price
1: 4190 € 4190 €
3: 3770 € 11310 €
5: 3680 € 18400 €
10+: 3270 € 32700 €
piDOSE-DCD/EM (Engineering Model)
Do you plan to install the radiation sensor aboard your satellite or High Altitude Balloon (HAB) project? Pick up the Digital CubeSat Dosimeter / Engineering Model to the development table or Flat Sat design. Best utilized clicked on the Evaluation Kit board... Develop the flight software, be inspired by the mechanical mount or electrical interfacing. That is what the Engineering Model can do!
The RED Remove Before Flight cover will always tell you well in advance to replace the unit for the full Flight Model!

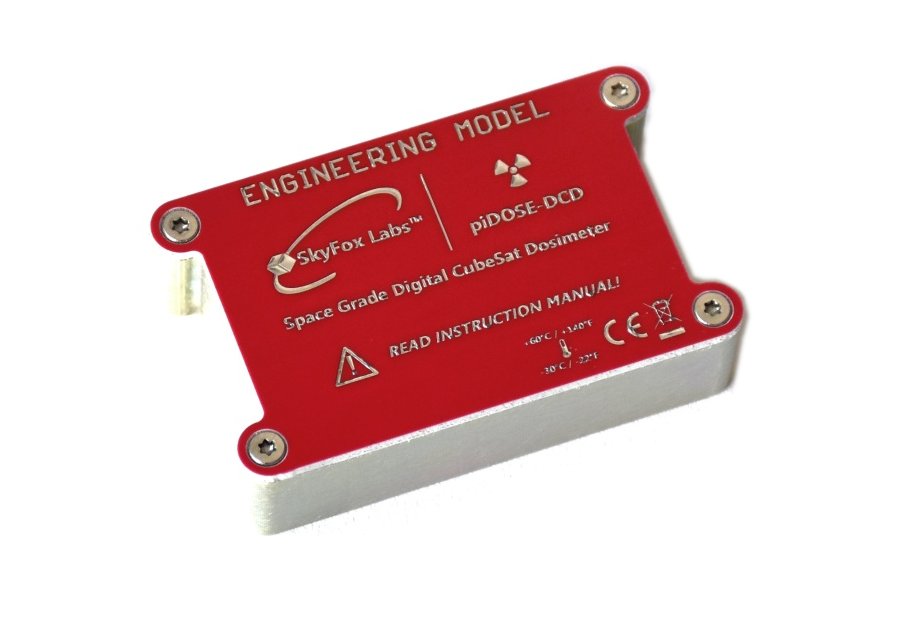

Part Number: piDOSE-DCD/EM (Engineering Model)
Product Summary
- Engineering Model, not for flight/vacuum use
- Digital CubeSat Dosimeter / Geiger Counter Sensor
- Space Weather Alarm (SWA) – triggered over 40 uSv/h
- Trigger set to 2x ISS Average Dose Rate
- FlatSat / Engineering use
- Immediate Alarm (within 1 second only!), No slow RadFET used!
- UART Data Output
- Measurement Range 0.01 to 9000 uSv/h
- Temperature Sensor, Bus Voltage Telemetry, Uptime counter
- Power Consumption 30 mW @ 3.3 V, 70 mW @ 5 V
- Operating range 0.1 – 10 MeV
- Data Output in miliSieverts per hour (mSv/h)
- Power Supply Input 2.7 to 5.5 V (full bandwidth in whole range)
- Ultra Low Dimensions 53x32x(+14, -1) mm
- RED Remove Before Flight Finish
- Low Mass 32 grams including four M2x8 mounting screws
- Dual Use Goods: YES
- HS Code: 9030.10
- Lead Time: 2-4 weeks + Shipping
- Country of Origin: Czech Republic
piDOSE-DCD/EK (Evaluation Kit)
The piDOSE-DCD/Evaluation Kit is the Full Set of Hardware making the development and system integration of the piDOSE-DCD unit Quick & Easy job!
You can utilize the Eval Kit PCB to study the mechanical mounting, work on the onboard software development and learn how to interface the unit with the core of the satellite.
Connect it with the associated FTDI USB-to-Serial cable and run any serial termial software to get your first messages from the sensor in minutes with no need for soldering!

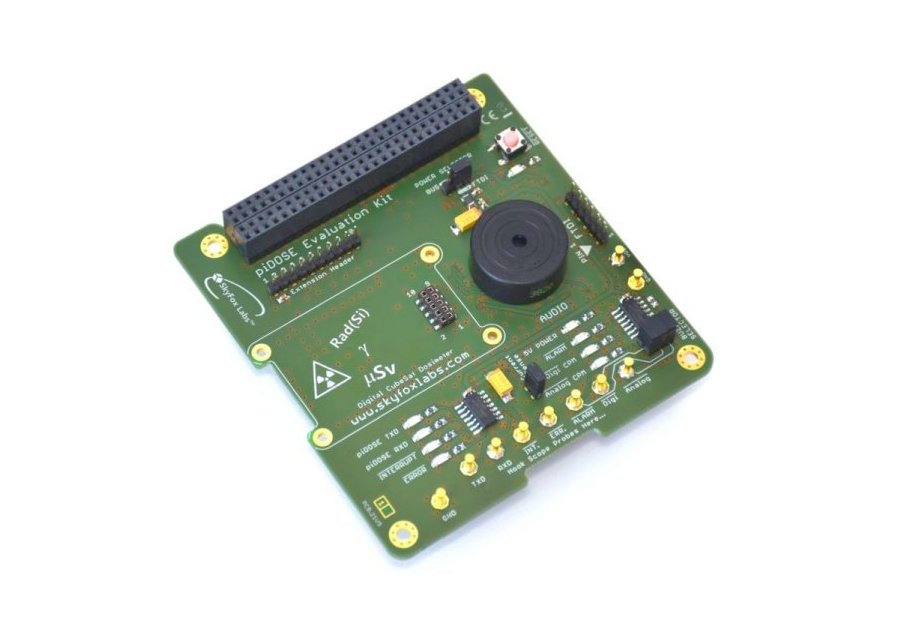

Part Number: piDOSE-DCD/EK (Evaluation Kit)
Product Summary
- piDOSE-DCD Evaluation Board with indicating LEDs
- Test pins ready for Scope Probe hooks
- Current Sensing and Voltage readout pins
- Header for the external USB-to-TTL serial cable connector (USB-to-Serial FTDI cable included)
- Integrated Buzzer for audio signalling
- Reset Switch
- 2x5 Female Header connector for the piDOSE-DCD included
- 1x10 pin Extension Header
- Powered and operated directly from CubeSat Bus or USB port i.e. from portable PC
- Dual Use Goods: NO
- HS Code: 8473.3020
- Lead Time: 1-3 weeks + Shipping
- Country of Origin: Czech Republic
