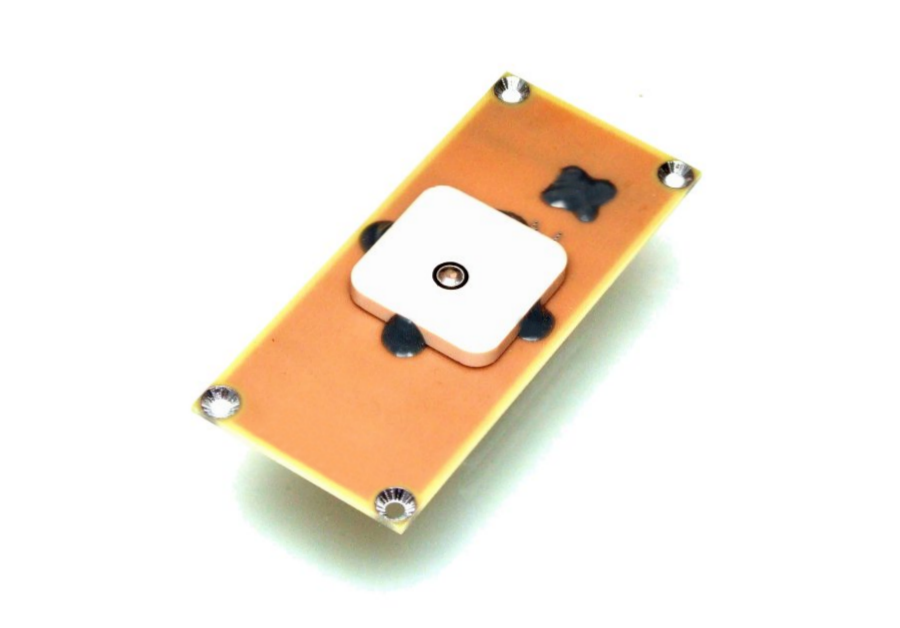

microPATCH-L1/FM (Flight Model)

microPATCH-L1


Need more space on a crowdy CubeSat?





Product Summary

  • Active Antenna with¬†LNA
  • Up to 50 dBc-Hz SNR¬†on ground for¬†close-to-zenith satellites
  • Dimensions: 82x36 mm, low profile, MCX connector
  • GPS-L1 band
  • Chipset TRL-9 ("Flight-proven")
  • Mounting¬†Holes Position Modification For Free
  • 2.7-5.5 V @ 20 mA
  • SAW Filter, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods:¬†YES
  • HS Code:¬†8529.10.69
  • Lead Time:¬†4-6 weeks
  • Country of Origin:¬†Czech Republic

microPATCH-L1/EM (Engineering Model)

microPATCH-L1


Take it easy at low cost!



Product Summary

  • Active Antenna with LNA
  • Functional Engineering Model for satellite development
  • Up to 50 dBc-Hz SNR on ground for close-to-zenith satellites
  • Engineering Model with¬†RED¬†Remove Before Flight finish
  • Dimensions: 82x36 mm, low profile, MCX connector
  • GPS-L1 band
  • 2.7-5.5 V @ 20 mA
  • SAW Filter, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time:¬†4-6 weeks
  • Country of Origin: Czech Republic
