miniPATCH-L1/FM (Flight Model)

miniPATCH-L1

Space-Friendly™ CubeSat GPS Antenna


Do you plan to Launch a Satellite into space and need a SatNav Equipment Onboard? Each GPS/GNSS receiver subsystem requires a High Quality Antenna with low noise, RF filters, high gain and appropriate radiation pattern capturing all available signals from the GNSS constellation.

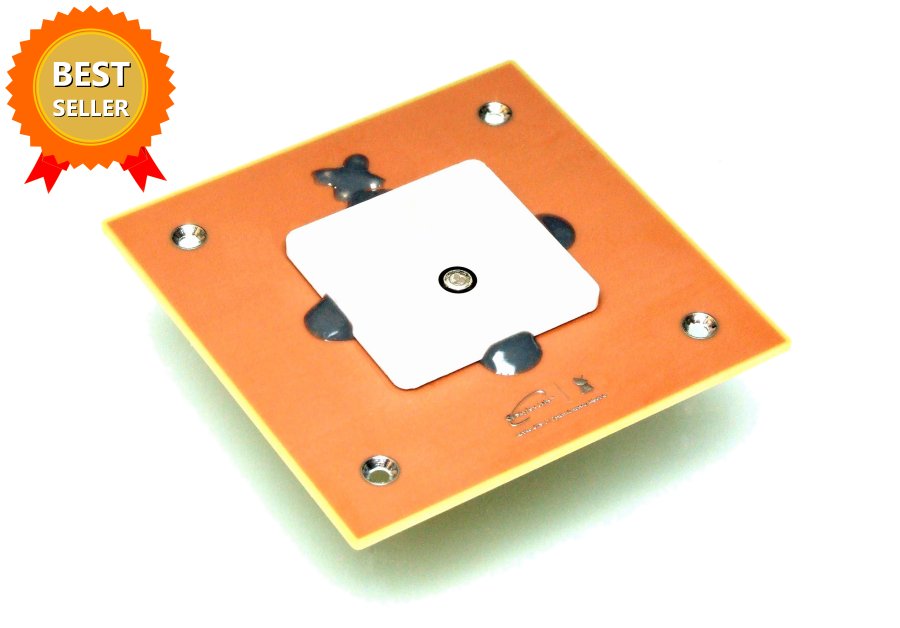

The miniPATCH-L1 is a best selling CubeSat GPS Antenna with timeless design, properties and performance. Used on various satellites, from basic CubeSats up to complex multi-kilogram missions. The module carries a mounting bracket acting as a groundplane which naturally equalize the antenna radation pattern. Optimal performance is achieved once the miniPATCH-L1 is fixed using countersunk screws.

Connect the RF Coaxial cable with DC power from 2.7 to 5.5V and start to receive first signals from GPS constellation with your GPS Receiver in minutes!


Part Number: miniPATCH-L1/FM (Flight Model)


Product Summary

  • ACTIVE Antenna with LNA
  • Flight Model for satellite development
  • Up to 50+ dBc-Hz SNR on ground for close-to-zenith satellites
  • Dimensions: 75x75 mm
  • Mass: 40 grams (excluding mounting screws)
  • TRL-9 ("Flight-proven")
  • GPS L1 as Standard, GPS L1 + GLONASS on Request
  • Mounting hole position modification FREE on Request
  • 2.7-5.5 V @ 20 mA
  • SAW Filter, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic



Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    2390 €      2390 €
3:    2150 €      6450 €
5:    2100 €      10500 €
10+:  1860 €      18600 €

miniPATCH-L1/EM (Engineering Model)

miniPATCH-L1

Each GPS receiver is extremelly sensitive to EMI/EMC environment on the satellite. Check that the GPS functionality is not disturbed by the satellite subsystems (Power Supplies, MPPT Controllers, Magnetorquers, Reaction Wheels, transmitters, receivers with local oscillators, all the PWM driven electronics,...) well before the spaceflight. The Signal-to-Noise Ratio (SNR) Test can be performed easily with the fully functional Engineering Model of the antenna anytime during the whole satellite development and testing campaign.

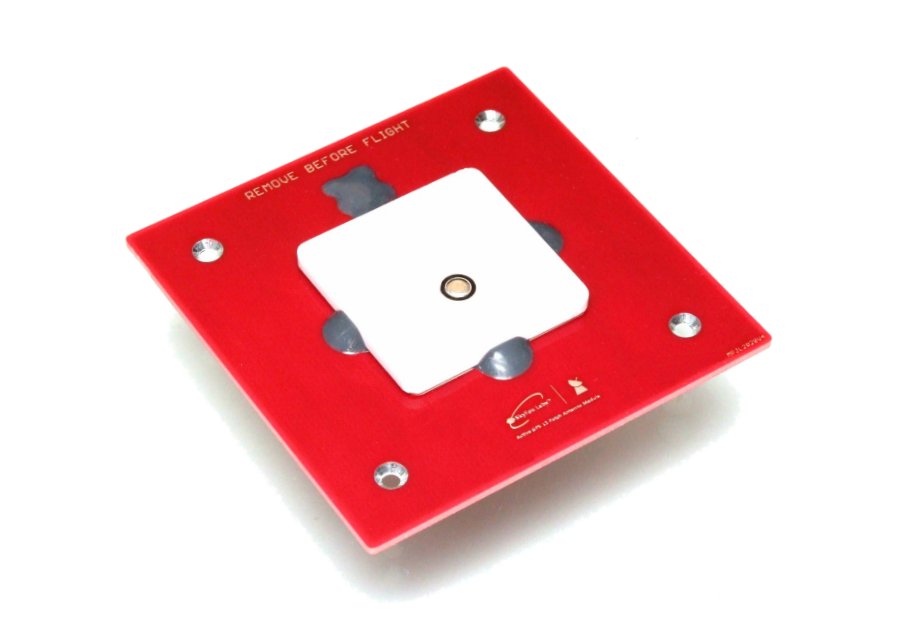

It is also ready to be connected to the Flight Model of the GPS Receiver. Red Remove Before Flight finish will remind you to replace it with the Flight Model of the antenna before the launch.


Part Number: miniPATCH-L1/EM (Engineering Model)




Product Summary

  • ACTIVE Antenna with LNA
  • Functional Engineering Model for satellite development
  • 50+ dBc-Hz SNR on ground for close-to-zenith satellites
  • Engineering Model with red Remove Before Flight finish
  • Dimensions: 75x75 mm
  • Mass: 40 grams (excluding mounting screws)
  • GPS L1 as Standard, GPS L1 + GLONASS on Request
  • Mounting hole position modification FREE on Request
  • 2.7-5.5 V @ 20 mA
  • SAW Filter, EMI shielding
  • Powered via RF Coax



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic
